When I purchased Swallow, I was lucky that the previous owners had kept the owners manual, a sales brochure plus various equipment manuals, instruction sheets and other information for the various systems on board. On this page I am placing links to a copy of that owners manual. There is not a lot in the owners manual I got, just 6 pages of faded blue prints but if you have nothing, then hopefully they will be of some help.

I also received copies of 4 additional plan drawings which also show the various systems from Tom Estlow of 'Mi Vida', Fuji 35 # 091

For an enlarged (more detail) version of each of the pages below click on the part of the manual you want to see.

Fuji 35 Technical Data

All of the data sheets in a single Adobe PDF file. Save and print this file to get it all!
File Size = 2.66 mb

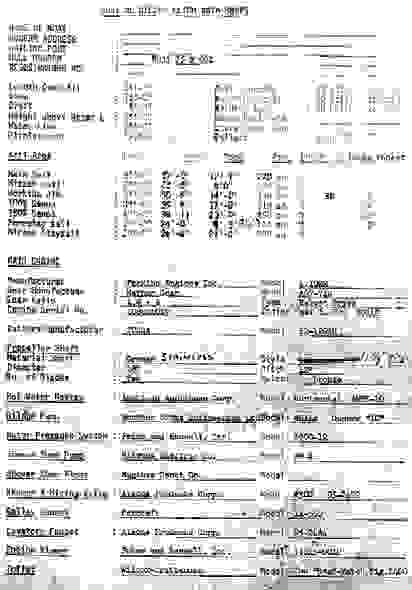

Data sheet with basic dimensions, sail sizes and original supplied equipment
File Size = 83 kb

Holding Tank System Flow Diagram
File Size = 94 kb

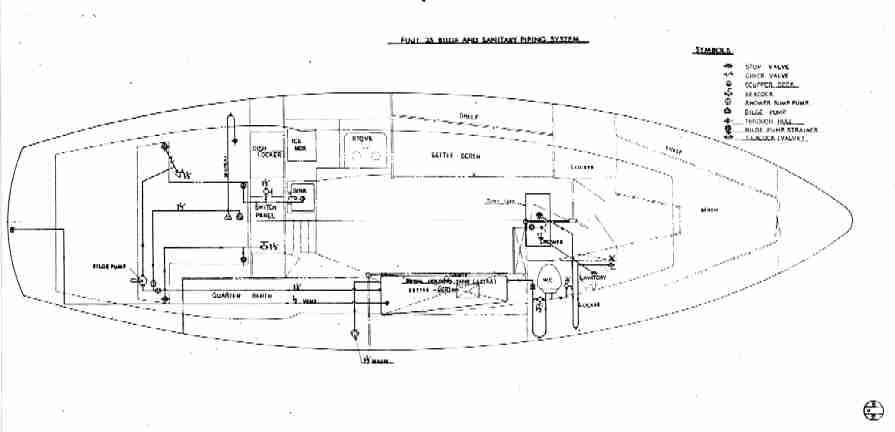

Holding Tank & Bilge System System Plan
File Size = 233 kb

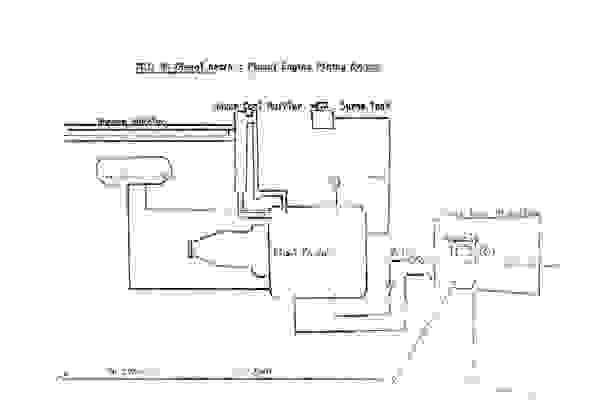

Diesel Engine Piping System Diagram
File Size = 73 kb

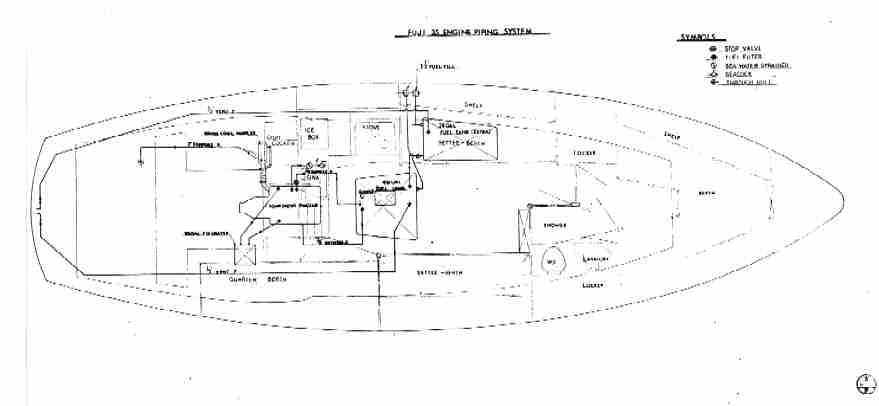

Diesel Engine Piping System Plan
File Size = 220 kb

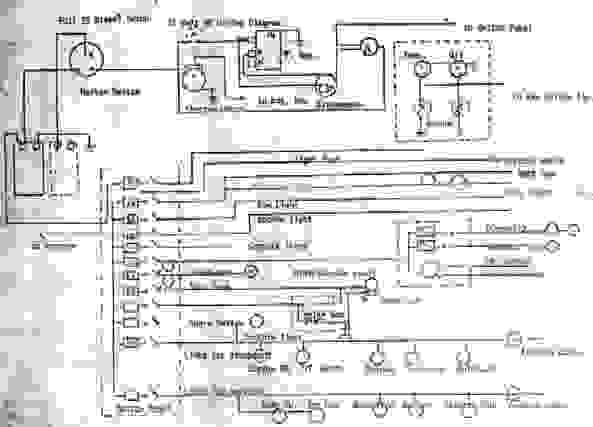

12 Volt DC Wiring Diagram
File Size = 83 kb

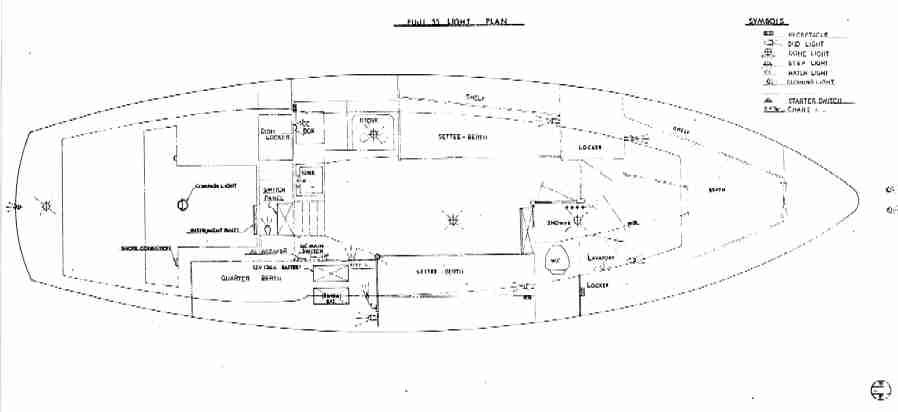

Light Plan
File Size = 205 kb

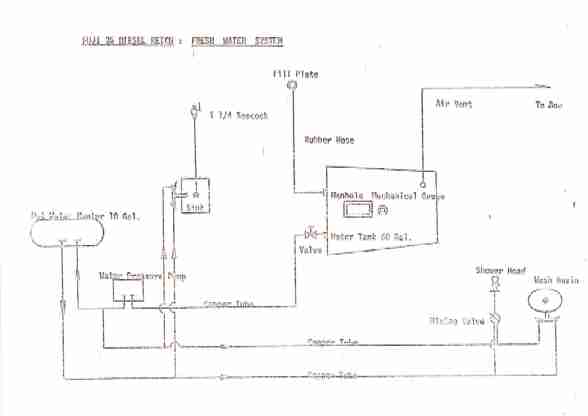

Fresh Water System Schematic
File Size = 70 kb

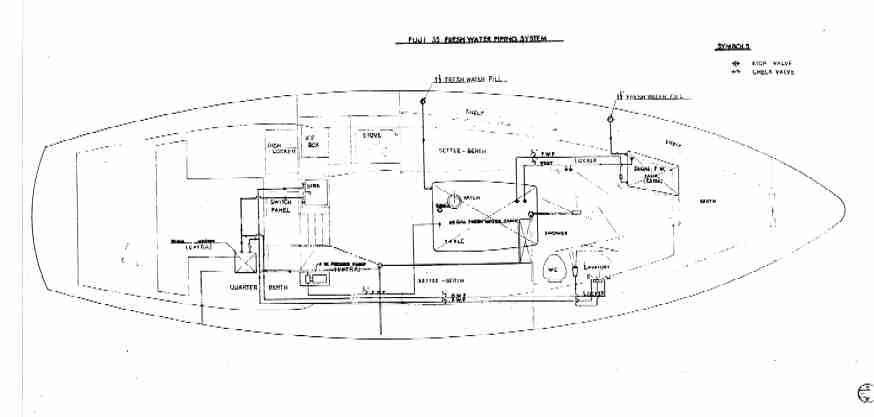

Fresh Water System Plan
File Size = 214 kb

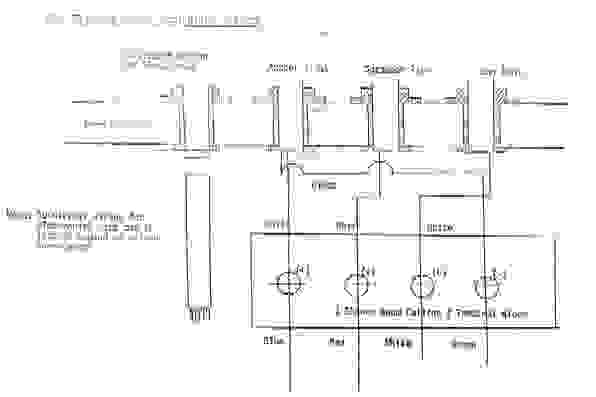

Mast wiring diagram of terminal block in Head ceiling
File Size = 83 kb

110 Volt AC wiring diagram
File Size = 63 kb

Click on the picture for a larger scale version to view and print. For the best quality print, bring up the large scale picture and save it to your hard drive as a JPG file. Then view the JPG file in a pitcure editor such as Microsoft Photo Editor and print it after setting the size to maximum on a single page.
